BB0703 Family: Enhanced PICkit 2 Systems

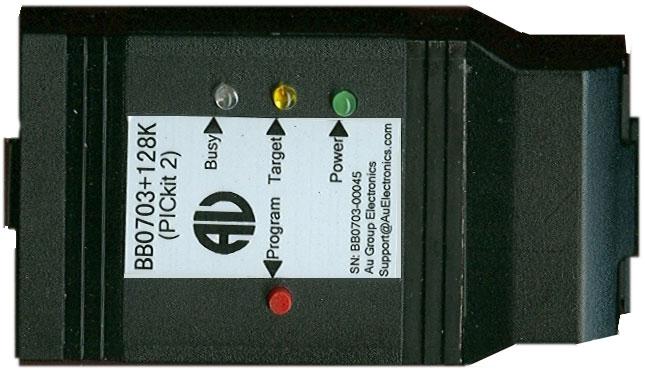

Fully Assembled PIC Programmer with Buck/Boost Circuits and 128K EEPROM Part#: BB0703+128K     Price: $39.99(USD) (Limited Life-Time Warranty)

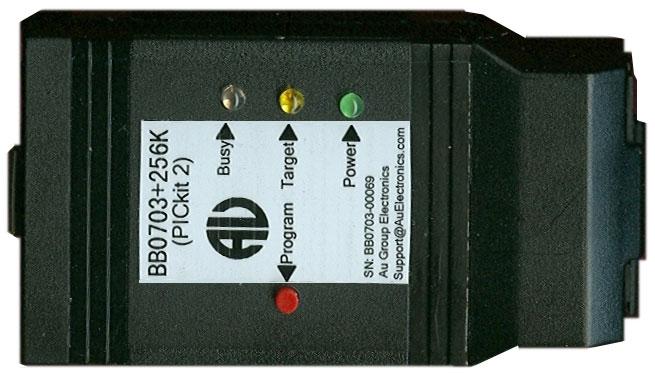

Fully Assembled PIC Programmer with Buck/Boost Circuits and 256K EEPROM Part#: BB0703+256K     Price: $49.99(USD) (Limited Life-Time Warranty)

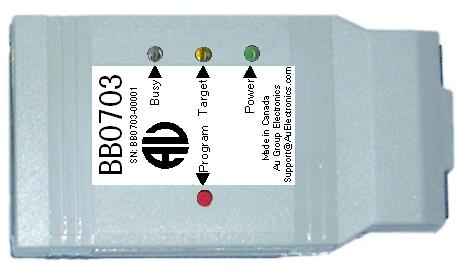

The Au Group Electronics "BB0703" and "BB0703+" are fully-assembled enhanced PICkit 2 systems with a limited life-time warranty.

The Microchip PICkit2 is a USB based ICSP (In Circuit Serial Programming) programmer. Since its first release, Microchip has opened all resources of PICkit2 to the public, which include all software source code and hardware schematics.

PICkit2, MPLAB, ICD2, ICD3, RealICE and PICkit 2 programmer are trademarks of Microchip Inc.

Au Group Electronics CB0703 and BB0703(s) are designed based on Microchip recommended software and hardware. To make it easy to use and compatible with ICD2/ICD3/RealICE, enhanced features, such as: a RJ12 interface and a dedicated power supply circuit, etc, are included on all editions. In addition, buck/boost voltage regulator circuits are included on all "BB0703+" products. This enhanced feature assures that the "BB0703+128K" and "BB0703+256K" always have +5V supply for programming even when USB power supply (normally +4.1V to +5V) drops down to +3V.

Feature List of BB0703 family and major competitors:

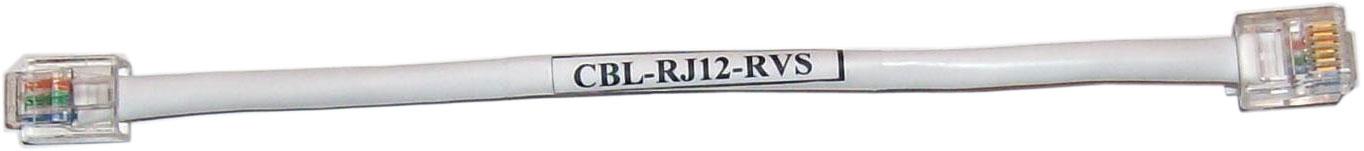

Since Feb. 2008, a RJ12 reverse cable has been included in this product family. It makes the system capable of working directly with circuit boards developed for ICD2/ICD3/RealICE.

The external power regulator circuit can provide +5V regulated voltage to PICkit 2 and application circuit. It also makes the BB0703 extremely easy to use for "Programmer-To-Go" (PTG) feature (supported by PICkit 2 programmer V2.50 and above versions, please see the YouTube video below).

Both "BB0703" and "BB0703+128K" include a standard 128K byte EEPROM for PTG feature. The feature of 256K byte EEPROM is naturally included in "BB0703+256K"; no hardware changes are necessary to take the advantage of 256K byte memory for PTG.

With BB0703/BB0703+ (PICkit 2), it is so easy to program PICs without a PC !!!

Major Features:

• Full implementation of Microchip-recommended circuits
• Unique enhanced features such as: external power supply, RJ12 interface, buck/boost voltage regulator (BB0703+ only) etc.
• Well designed hardware, no "Vpp pumping" is required
• Dimension:3" L x 1.72"W x 0.81"H (77 x 43.5 x 20.5 mm)
• Color: PC white or Black
• USB power supply: 5V 100 mA
• USB connector: Type B or Mini-B
• Enhanced extra power supply (Optional): 9V 100 mA, positive center
• ICSP interface: RJ12 6-Pin
• Chip support: baseline (PIC10F, PIC12F5xx, PIC16F5xx), midrange (PIC12F6xx, PIC16F), PIC18F, PIC24, dsPIC30, dsPIC33, PIC32, and Microchip Serial EEPROM products
• A RJ12 6 pin reverse cable included: BB0703 can work directly with board developed for ICD2/ICD3/RealICE on programming and/or debugging

"The PICkit 2 Development Programmer/Debugger" is a low-cost development tool with an easy to use interface for programming and debugging Microchip Flash families of microcontrollers." ----- Microchip

Note: If you prefer using your own shipping account/method or if you arrange a pre-paid self-addressed envelope (Fedex, UPS, USPS, DHL, etc), Please contact us for ordering information.

***** We provide limited life-time warranty to all system Products *****

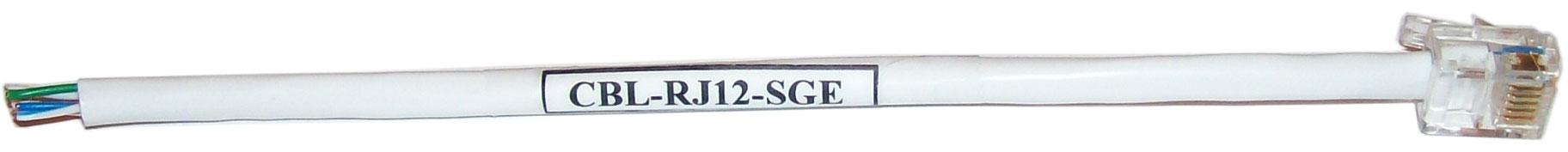

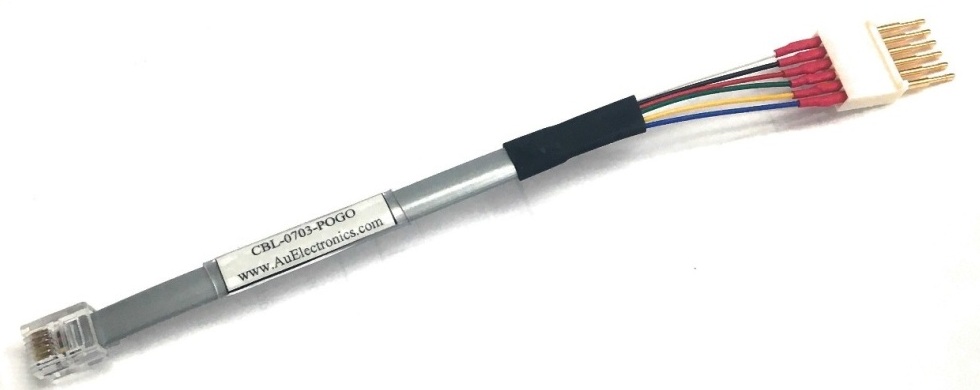

RJ12 6-Pin Cables

Others BB0703 (PICKit 2) Accessories

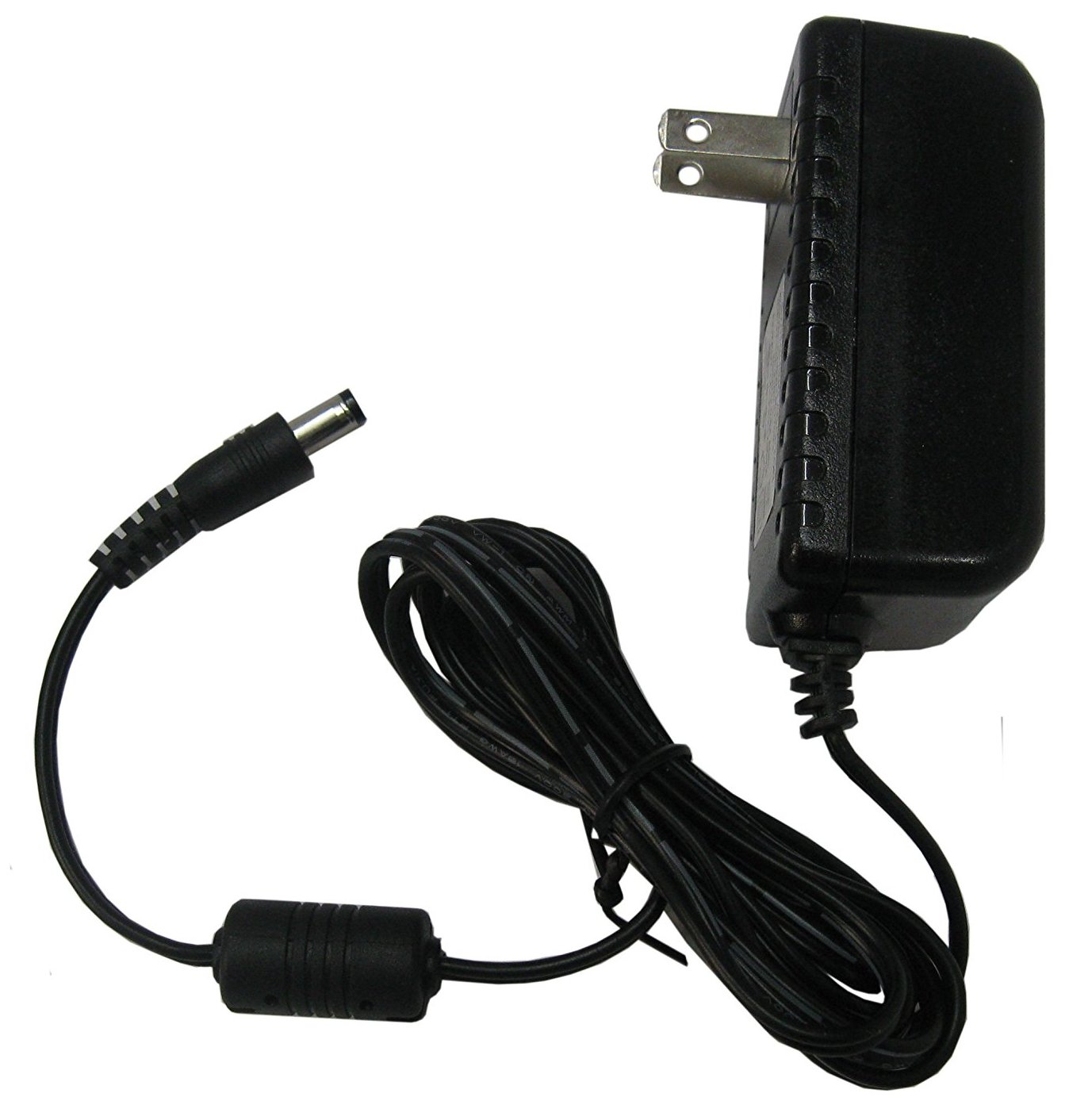

Wall Mount AC/DC Power Supply - Positive Center Part#: PWR-912V-CP       Price: $14.99 (USD)
USB Cable A to MiniB Item #: CBL-USB-A-MiniB       Price: $5.99 USD

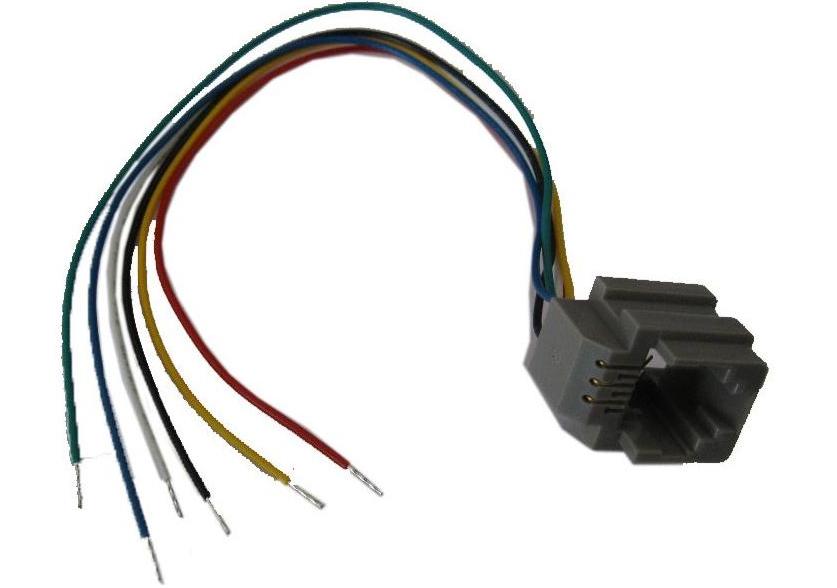

RJ12 Cable to Board for Programming Item #: CBL-RJ12-Program       Price: $3.79 USD



BB0703 (PICkit 2) Programmer-To-Go video (1)



BB0703 (PICkit 2) Programmer-To-Go video (2)
