CVT485 - RS485/RS232 Converter

CVT485

Industry edition Part#:CVT485E
Price:$54.99 USD

Commercial edition
Part#:CVT485
Price:$49.99 USD

CVT485 - RS485/RS232 Converter (Non-Echo Editions)
Non-Echo Industry edition
Part#:CVT485E-NE
Price:$54.99 USD
Non-Echo Commercial edition
Part#:CVT485-NE
Price:$49.99 USD

The CVT485 Converter is a handheld device typically used to convert signals between RS485/SAE J1708 (two-wire operation balanced half-duplex) and RS232 (two-channel). An external +12V power supply is required to connect the two power-supply pins on the device by a RS485 cable. The CVT485 Converter has a DB-9 female RS-232C connector and a DB-9 male/female connector on the RS485/SAE J1708 bus side. The DB-9 male-connector and its cable on the RS485 side is the most popular choice.

Major Features:

  • Dimension: 3.1"L x 1.69"W x 0.8"H (78x43x21mm)
  • Weight: 2.8 oz
  • Color: PC white or Black
  • Power supply: +12V, 35 mA normal, 350 mA max.
  • PC interface: DB-9 female RS232C connector

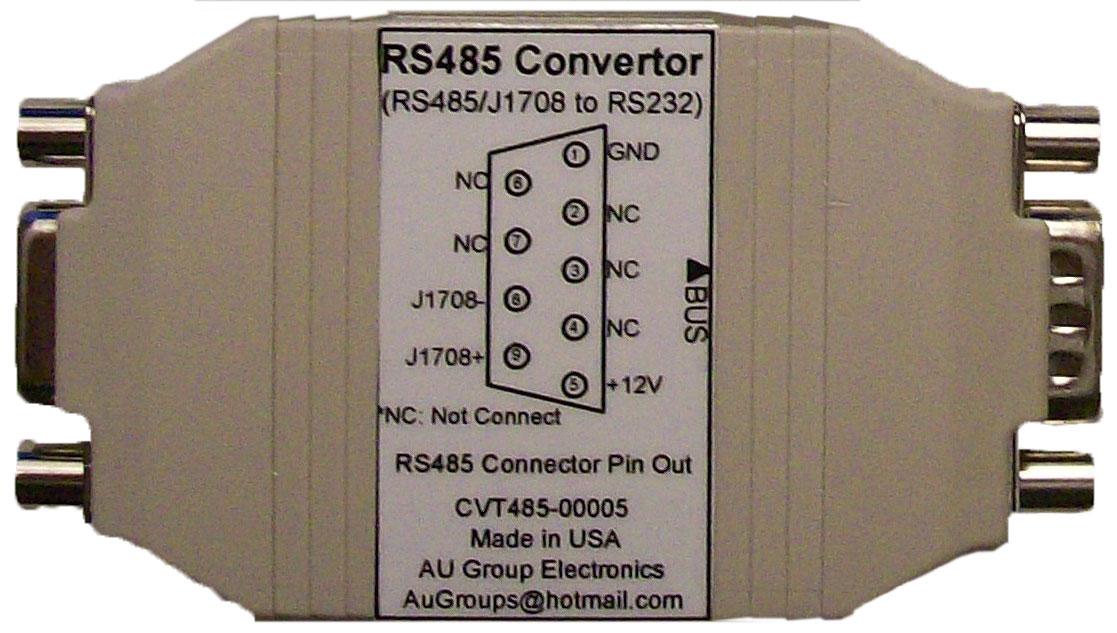

  • RS485/SAE J1708 connector: DB-9 male(most popular)/female connector (Note: pin functions are different between male and female connectors)
  • Max Data rate: 115.2K baud rate (standard with echo
  • Temperature range: standard Commercial editions (CVT485, CVT485-NE): 0 ~ 70 °C, Industry editions (CVT485E, CVT485E-NE): -40 ~ 85 °C
  • Completely Auto-Sensing and Self-Adjusting (Baud rates and Data Formats)
  • Non-echo editions (CVT485-NE, CVT485E-NE) are also available.

RS485 Converter User Manual

***** We provide limited life-time warranty to all system Products *****

Note:  If you prefer using your own shipping account/method for fast delivery, please contact us immediately after the order is placed.

CVT485 Accessories

RS232 Serial Extension Cable

Part #: CBL-RS232-01       Price: $8.99 USD



RS485 Cable for DB9 Male Connector (Most popular)

Part #: CBL-RS485-01      Price:$12.99 USD



RS485 Cable for DB9 Female Connector

Part #: CBL-RS485-02      Price:$12.99 USD
