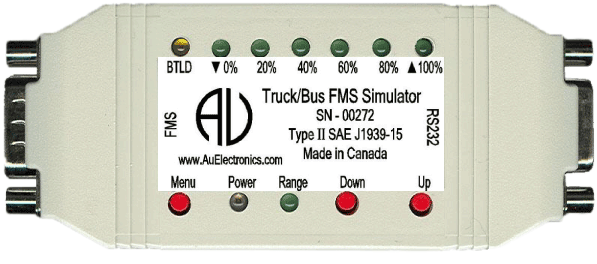

SIM-FMS-006: Au Truck and Bus FMS Simulator 1.00A, Plus Edition, includes all function of Au Truck and Bus FMS simulator (non-plus) edition, plus a PC Remote Terminal to Display data and Control data. It simulates all FMS (Fleet Management System) parameters defined by recent released FMS-Standard Vers. 02.00 and Bus FMS-Standard Vers. 00.02).
Major Hardware Features:
* SAE J1939-15 Type II ECU, contains an internal 120 ohm load resistor for easy network setup
* Common-Mode Choke and TVS (Transient Voltage Suppressor) protection on CAN bus
* Compact size: 4-1/8" L X 1-3/4"W X 7/8"H
* 9 LED indicators: POWER, RANGE, BTLD, UP+100%, DOWN+0%, 80%, 60%, 40%, 20%, Led will blink when one of these six numeric-specified control point is selected.
* Enclosure color: Black or PC white
* 1 Buzzer
* 3 push buttons: MENU, DOWN, UP, the FMS CAN signal can be adjusted by push buttons
* 1 RS232 interface for software update, license management and remote control (Plus editions only) * 1 DB9 male connector for Power, Ground, CAN_H and CAN_L
* Accessory cables are available and must be ordered separately, both RS232 Serial Extension Cable (part #: CBL-RS232-01) and 4-wire CAN Cable for DB9 Male Connector (part #: CBL-CAN-01, which provides power supply and CAN network connection to the simulator) are available and must be ordered separately
* Power supply: +9 ~ +12VDC, 250 mA max (+9 V recommended)
* Operating temperature: -4 °F to 185 °F (-20 °C to 85 °C)
Major Operating Features:
* Ease of use - Easy-operate design with production-line-operator and sales person in mind
* Smart features - Recall last operating mode at power-on, capable of generating dynamic data, etc.
* STATIC MODE output steady FMS CAN signal, which can also be adjusted manually
* DYNAMIC MODE automatically generate dynamic FMS CAN signal
* STATIC MODE and DYNAMIC MODE can be easily alternated
* PC remote software is available for all "Plus" editions, it can show simulated FMS signal on a computer screen
* All Control functions are also available from the PC remote software for all "Plus" editions
* Easy In-field license upgrade with Au license management tool. For owners with "Truck FMS" Edition(s) or "Bus FMS" Edition(s), when more function is needed, they can be easily upgrade to "Truck and Bus FMS" Edition(s)
* In-field software code (firmware) update Capability for minor upgrades (Order #: SVS-SIM-FMS) with Au PIC Bootloader
* Annual support and minor upgrade services (Order #: SVS-SIM-FMS) are available
* Custom design and modification are available Truck and Bus FMS simulator, non-Plus Edition, can statically or dynamically simulate all controller area network (CAN) signal defined by Truck FMS standard and Bus FMS Standard.
* Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. * The dynamic mode will automatically cycling the data in its range (standard defined).
* LEDs will indicate the control status. And Buzzer sound reflects push button inputs.
* The buzzer sound can also be disabled. After a network is physically connected, simply powering up the simulator will get it transmitting CAN data on a truck FMS and Bus FMS CAN network.
* No software setup and No CAN protocol configuration skill are required. Static mode will generate steady Truck FMS CAN data and Bus FMS CAN data.
* Dynamic mode will generate constant-changing Truck FMS CAN data and Bus FMS automatically. All CAN parameters defined by Truck FMS standard Ver 01.00 and Bus FMS standard Ver 00.02 are supported by Truck and Bus FMS simulator.
Supported Parameters:
• Wheel Based Speed
• Clutch switch
• Brake switch
• Cruise control active
• Accelerator pedal position
• Total fuel used
• Fuel level
• Engine speed
• Total Engine Hours
• Vehicle Identification Number
• SW-version supported
• Requests supported
• Diagnostics supported
• High resolution Total vehicle distance
• Drive recognize
• Driver 1 working state
• Driver 1 time related states
• Driver 1 card
• Driver 2 working state
• Driver 2 time related states
• Driver 2 card
• Tachograph vehicle speed
• Direction indicator
• Tachograph performance
• Overspeed
• Handling information
• System event
• Engine coolant Temperature
• Ambient Air Temperature
• Driver 1 identification
• Driver 2 identification
• Fuel Rate
• Instantaneous Fuel Economy
• TP.CM + DT Transport protocol
• Service distance
• Axle location (0, 1, 2) for Axle weight
• Tire location (0, 1, 2, 3) for Axle weight
• Axle weight (00, 01, 10-13, 20-23)
• PTO state
• PTO Driver Engagement
• Engine Percent Load at Current Speed
• High Resolution Fuel Consumption (Liquid): HRLFC
• Parking Brake Switch
• Position of Doors
• Ramp/Wheel chairlift
• Status 2 of doors
• Lock status Door 1-10
• Open status Door 1-10
• Enable status Door 1-10
• Seconds, Minutes, Hours
• Month, Day, Year
• Service Brake Air Pressure Circuit #1
• Service Brake Air Pressure Circuit #2
• Alternator Status 1-4
• Selected Gear
• Current Gear
• Bellow Pressure Front Axle Left
• Bellow Pressure Front Axle Right
• Bellow Pressure Rear Axle Left
• Bellow Pressure Rear Axle Right
• Telltale Block ID (0-2)
• Telltale Status 1-15
Following is the list fpr Telltale block ID and status:
ID Telltale Status Name
0 1 Cooling air conditioning
0 2 High beam, main beam
0 3 Low beam, dipped beam
0 4 Turn signals
0 5 Hazard warning
0 6 Provision for the disabled or handicapped persons
0 7 Parking Brake
0 8 Brake failure / brake system malfunction
0 9 Hatch open
0 10 Fuel level
0 11 Engine coolant temperature
0 12 Battery charging condition
0 13 Engine oil
0 14 Position lights, side lights
0 15 Front fog light
1 1 Rear fog light
1 2 Park Heating
1 3 Engine
1 4 Service, call for maintenance
1 5 Transmission fluid temperature
1 6 Transmission failure / malfunction
1 7 Anti-lock brake system failure
1 8 Worn brake linings
1 9 Windscreen/ windshield washer fluid
1 10 Tire failure / malfunction
1 11 Malfunction / general failure
1 12 Engine oil temperature
1 13 Engine oil level
1 14 Engine coolant level
1 15 Steering fluid level
2 1 Steering failure
2 2 Height Control (Leveling)
2 3 Retarder
2 4 Engine Emission system failure
2 5 ESP indication
2 6 Brake lights
2 7 Articulation
2 8 Stop Request
2 9 Pram request
2 10 Bus stop brake
2 11 Ad blue level
Major Hardware Features:
* SAE J1939-15 Type II ECU, contains an internal 120 ohm load resistor for easy network setup
* Common-Mode Choke and TVS (Transient Voltage Suppressor) protection on CAN bus
* Compact size: 4-1/8" L X 1-3/4"W X 7/8"H
* 9 LED indicators: POWER, RANGE, BTLD, UP+100%, DOWN+0%, 80%, 60%, 40%, 20%, Led will blink when one of these six numeric-specified control point is selected.
* Enclosure color: Black or PC white
* 1 Buzzer
* 3 push buttons: MENU, DOWN, UP, the FMS CAN signal can be adjusted by push buttons
* 1 RS232 interface for software update, license management and remote control (Plus editions only) * 1 DB9 male connector for Power, Ground, CAN_H and CAN_L
* Accessory cables are available and must be ordered separately, both RS232 Serial Extension Cable (part #: CBL-RS232-01) and 4-wire CAN Cable for DB9 Male Connector (part #: CBL-CAN-01, which provides power supply and CAN network connection to the simulator) are available and must be ordered separately
* Power supply: +9 ~ +12VDC, 250 mA max (+9 V recommended)
* Operating temperature: -4 °F to 185 °F (-20 °C to 85 °C)
Major Operating Features:
* Ease of use - Easy-operate design with production-line-operator and sales person in mind
* Smart features - Recall last operating mode at power-on, capable of generating dynamic data, etc.
* STATIC MODE output steady FMS CAN signal, which can also be adjusted manually
* DYNAMIC MODE automatically generate dynamic FMS CAN signal
* STATIC MODE and DYNAMIC MODE can be easily alternated
* PC remote software is available for all "Plus" editions, it can show simulated FMS signal on a computer screen
* All Control functions are also available from the PC remote software for all "Plus" editions
* Easy In-field license upgrade with Au license management tool. For owners with "Truck FMS" Edition(s) or "Bus FMS" Edition(s), when more function is needed, they can be easily upgrade to "Truck and Bus FMS" Edition(s)
* In-field software code (firmware) update Capability for minor upgrades (Order #: SVS-SIM-FMS) with Au PIC Bootloader
* Annual support and minor upgrade services (Order #: SVS-SIM-FMS) are available
* Custom design and modification are available Truck and Bus FMS simulator, non-Plus Edition, can statically or dynamically simulate all controller area network (CAN) signal defined by Truck FMS standard and Bus FMS Standard.
* Two push buttons (UP and DOWN buttons) are used in the static mode to control the data outputs. * The dynamic mode will automatically cycling the data in its range (standard defined).
* LEDs will indicate the control status. And Buzzer sound reflects push button inputs.
* The buzzer sound can also be disabled. After a network is physically connected, simply powering up the simulator will get it transmitting CAN data on a truck FMS and Bus FMS CAN network.
* No software setup and No CAN protocol configuration skill are required. Static mode will generate steady Truck FMS CAN data and Bus FMS CAN data.
* Dynamic mode will generate constant-changing Truck FMS CAN data and Bus FMS automatically. All CAN parameters defined by Truck FMS standard Ver 01.00 and Bus FMS standard Ver 00.02 are supported by Truck and Bus FMS simulator.
Supported Parameters:
• Wheel Based Speed
• Clutch switch
• Brake switch
• Cruise control active
• Accelerator pedal position
• Total fuel used
• Fuel level
• Engine speed
• Total Engine Hours
• Vehicle Identification Number
• SW-version supported
• Requests supported
• Diagnostics supported
• High resolution Total vehicle distance
• Drive recognize
• Driver 1 working state
• Driver 1 time related states
• Driver 1 card
• Driver 2 working state
• Driver 2 time related states
• Driver 2 card
• Tachograph vehicle speed
• Direction indicator
• Tachograph performance
• Overspeed
• Handling information
• System event
• Engine coolant Temperature
• Ambient Air Temperature
• Driver 1 identification
• Driver 2 identification
• Fuel Rate
• Instantaneous Fuel Economy
• TP.CM + DT Transport protocol
• Service distance
• Axle location (0, 1, 2) for Axle weight
• Tire location (0, 1, 2, 3) for Axle weight
• Axle weight (00, 01, 10-13, 20-23)
• PTO state
• PTO Driver Engagement
• Engine Percent Load at Current Speed
• High Resolution Fuel Consumption (Liquid): HRLFC
• Parking Brake Switch
• Position of Doors
• Ramp/Wheel chairlift
• Status 2 of doors
• Lock status Door 1-10
• Open status Door 1-10
• Enable status Door 1-10
• Seconds, Minutes, Hours
• Month, Day, Year
• Service Brake Air Pressure Circuit #1
• Service Brake Air Pressure Circuit #2
• Alternator Status 1-4
• Selected Gear
• Current Gear
• Bellow Pressure Front Axle Left
• Bellow Pressure Front Axle Right
• Bellow Pressure Rear Axle Left
• Bellow Pressure Rear Axle Right
• Telltale Block ID (0-2)
• Telltale Status 1-15
Following is the list fpr Telltale block ID and status:
ID Telltale Status Name
0 1 Cooling air conditioning
0 2 High beam, main beam
0 3 Low beam, dipped beam
0 4 Turn signals
0 5 Hazard warning
0 6 Provision for the disabled or handicapped persons
0 7 Parking Brake
0 8 Brake failure / brake system malfunction
0 9 Hatch open
0 10 Fuel level
0 11 Engine coolant temperature
0 12 Battery charging condition
0 13 Engine oil
0 14 Position lights, side lights
0 15 Front fog light
1 1 Rear fog light
1 2 Park Heating
1 3 Engine
1 4 Service, call for maintenance
1 5 Transmission fluid temperature
1 6 Transmission failure / malfunction
1 7 Anti-lock brake system failure
1 8 Worn brake linings
1 9 Windscreen/ windshield washer fluid
1 10 Tire failure / malfunction
1 11 Malfunction / general failure
1 12 Engine oil temperature
1 13 Engine oil level
1 14 Engine coolant level
1 15 Steering fluid level
2 1 Steering failure
2 2 Height Control (Leveling)
2 3 Retarder
2 4 Engine Emission system failure
2 5 ESP indication
2 6 Brake lights
2 7 Articulation
2 8 Stop Request
2 9 Pram request
2 10 Bus stop brake
2 11 Ad blue level
Additional Information
| Version | 1.00A |
| Edition | Truck and Bus FMS Plus Edition |
| Au Part # | SIM-FMS-006 |
