Au SAE J1708 / J1587 Simulator Value Package (non-plus) edition is a stand-alone device which is capable of simulating the most frequently used J1708 / J1587 engine parameters. It can run independently, no PC is required.

This device is designed with assembly line operator and sales person in mind, which makes it very easy to use. No decent knowledge or experience of J1708/J1587 is required to operate this device. Simply connect the device to a J1708 network, power it up, you are good to go.

Au SAE J1708 / J1587 Simulator Value Package (Non-plus) Edition is designed to simulate the following Message ID and PIDs (parameter identification) on a J1708 / J1587 network:

• Message ID: 128 (Engine #1)
• PID list:
* Request Parameter (PID: 0)
* Percent Engine Load (PID: 92)
* Engine Oil Pressure (PID: 100)
* Engine Coolant Temperature (PID: 110)
* Fuel Rate (Instantaneous) (PID: 183)
* Engine Speed (PID: 190)
* Engine Hour **(PID: 247)

(Note: * *On Request per SAE J1587 definition)

Major Hardware Features:
• Power supply: +9V~+14.2V DC, +12V nominal, 250mA max
• SAE J1708/J1587 Baud rate: 9600 bits/second
• Bit Access Time: per SAE J1708 Section 3.1 and Section 5.2.2.2
• Minimum Idle Time: 10 bit times
• Bus Termination shall not be used per SAE J1708 Section 4.4.
• Ground: all assemblies using the link must have Common Ground References
• Wire: a minimum 18 AWG twisted-pair wire, with a minimum of one twist/inch (360 ˚/2.54 mm) is required
• Maximum network length: 131 feet (40 meter)
• Minimum capacity: 20 standard nodes
• Inter-character bit time ≤ 2 bit time

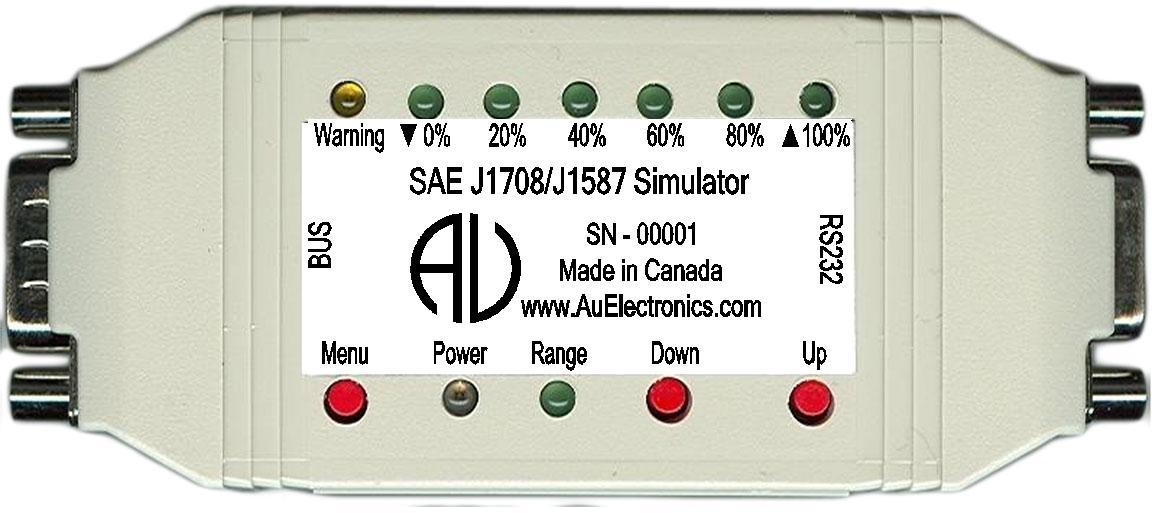

• Enclosure color: Black or PC white • Compact size: 4-1/8" L X 1-3/4"W X 7/8”H (10.5 X 4.2 X 2 cm)
• Operating temperature: -4 ˚F to 185 ˚F (-20 ˚C to 85 ˚C)
• 1 buzzer
• 9 LED indicators: Power, Range, Warning*, ▼0%, 20%, 40%, 60%, 80%,▲100%
• 3 push buttons: Simulated J1708 signals can be adjusted by push buttons: Menu, Down, Up • 1 DB9 Male "BUS" Interface: for power supply and J1708 network connection
• 1 RS232 interface: for in-field firmware update, license management and remote control (Plus edition only).
• TVS (Transient Voltage Suppressor) protection on J1708 bus (Note: * Warning LED is not used in Value package editions)
(Note: * Warning LED is not used in Value package editions)

Major Operating Features:
• Smart features: Recall last operating mode at power-on, capable of generating dynamic data, etc.
• Ease of use: Easy-to-operate design with production line operator and sales person in mind. No software setup experience or J1708 protocol configuration skill is required. After a network is physically connected, it will dynamically generate J1708 data when it enters dynamic mode.
• Static mode and dynamic mode:
* Static mode output static J1708 signals. In this mode, signal can be changed manually
* Dynamic mode automatically changes the output value of J1708 signals
* Two modes can be switched easily
• "Remote Terminal" software: will be available if upgraded to "Plus" edition, it can be used to remote control the device and display simulated J1708 signals on a computer screen.
• All push button control functions are available on PC "Remote Terminal" software ("Plus" editions only)
• Easy in-field license upgrade feature
• In-field firmware update capability
• Annual support and minor upgrade services are available (SVS-SIM-J1708)
• Custom design is available upon request
