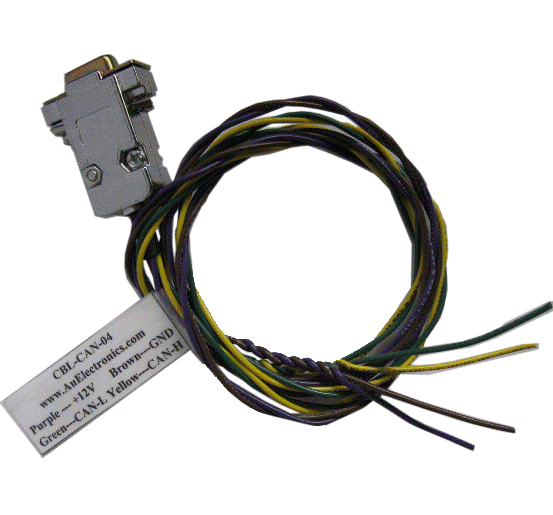

CBL-CAN-04: DB9 female connector to two pair of twisted color coded wires

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • CBL-CAN-04: DB9 female connector to two pair of twisted color coded wires
  • Color coding of the pin-out on CAN Cable, Note: CAN-H could be in White Color or Yellow Color.

CBL-CAN-04: DB9 female connector to two pair of twisted color coded wires

Be the first to review this product

Availability: In stock.

$9.99
Add Items to Cart
OR

Quick Overview

Two pair of twisted color coded wires are connected to a DB9 female connector, it is designed for connection of Au J1939 products to CAN High, CAN Low, Power and Ground.

Product Description

One end is DB9 female connector, it is designed to mate with Au J1939 products at bus side, such as: J1939 Message Center System, J1939 Data Center System,
J1939 Simulators, etc.

The other end is a pig-tail with two pair of twisted color coded wires.
Purple wire: Power supply, +12V
Brown wire: Ground
Yellow wire: CAN High
Green wire: CAN Low

Cable length: 3 feet

Additional Information

Au Part # CBL-CAN-04
